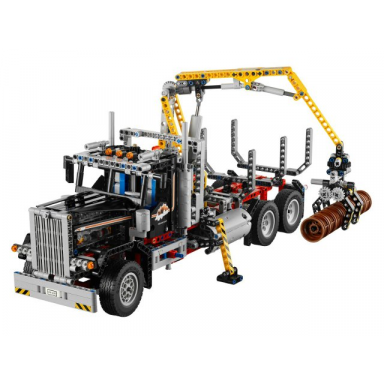

Набор LEGO 9397 Logging Truck

Серия: Technic

Общая информация

• Артикул: 9397-1
• Год выпуска: 2012
• Вес: 421 гр
• Коробка: ? см x ? см x ? см

Состав набора

• 1 308 деталей
• Инструкция и коробка

Детали в наборе

Кол−воКоличество	Фото	Название
1		Sticker Sheet for Set 9397 - (71530/4654705) 9397stk01
2		Black Plate, Modified 2 x 2 with Pin Hole 2444
191		Black Technic, Pin with Short Friction Ridges 2780
2		Black Plate 1 x 2 3023
1		Black Plate 4 x 8 3035
14		Black Technic, Axle and Pin Connector Angled #1 32013
2		Black Technic, Axle and Pin Connector Angled #6 - 90 degrees 32014
6		Black Tire 62.4 x 20 S 32019
5		Black Technic, Axle and Pin Connector Angled #2 - 180 degrees 32034
18		Black Technic, Pin 3L with Friction Ridges and Stop Bush 32054
2		Black Technic, Axle and Pin Connector Perpendicular 3L with Pin Hole 32068
6		Black Technic Knob Cog / Gear / Wheel with Axle Hole (+ Orientation) 32072
2		Black Technic, Pin Double with Axle Hole 32138
14		Black Technic, Axle and Pin Connector Perpendicular 3L with Center Pin Hole 32184
3		Black Technic, Gear 20 Tooth Double Bevel 32269
7		Black Technic, Gear 12 Tooth Double Bevel 32270
4		Black Technic, Liftarm Thick 1 x 5 32316
4		Black Technic, Liftarm, Modified Bent Thick 1 x 7 (4 - 4) 32348
4		Black Technic, Liftarm Thin 1 x 4 - Axle Holes 32449
10		Black Technic, Liftarm Thick 1 x 3 32523
5		Black Technic, Liftarm Thick 1 x 7 32524
12		Black Technic, Liftarm Thick 1 x 11 32525
3		Black Technic, Liftarm, Modified Bent Thick L-Shape 3 x 5 32526
4		Black Technic, Pin Connector Perpendicular Double 3L 32557
1		Black Plate 1 x 8 3460
8		Black Technic, Axle 4L 3705
10		Black Technic, Axle 6L 3706
5		Black Technic, Axle 12L 3708
2		Black Plate 1 x 4 3710
3		Black Technic, Axle 10L 3737
2		Black Technic, Liftarm Thick 1 x 9 40490
3		Black Technic, Liftarm Thick 1 x 13 41239
7		Black Technic, Liftarm, Modified T-Shape Thick 3 x 3 60484
19		Black Technic, Pin Connector Round 2L with Slot (Pin Joiner Round) 62462
2		Black Technic, Panel Curved 11 x 3 with 2 Pin Holes through Panel Surface 62531
4		Black Tile 1 x 3 63864
1		Black Technic, Panel Fairing # 6 Long Smooth, Side B 64393
1		Black Technic, Panel Fairing #13 Large Short Smooth, Side A 64394
1		Black Technic, Panel Fairing #14 Large Short Smooth, Side B 64680
1		Black Technic, Panel Fairing # 5 Long Smooth, Side A 64681
13		Black Technic, Axle and Pin Connector Perpendicular 6536
8		Black Technic, Liftarm, Modified Bent Thick 1 x 9 (6 - 4) 6629
23		Black Technic, Pin 3L with Friction Ridges and Center Pin Hole 87082
2		Black Technic, Pin Connector Toggle Joint Smooth Double with Axle and Pin Holes 87408
1		Black Technic, Gear Rack 1 x 7 with Axle and Pin Holes 87761
1		Black Technic Turntable 28 Tooth, Top 99010
8		Black Technic, Liftarm, Modified Triangle Thin 3 x 5 with Short Supports 99773
4		Blue Technic, Liftarm, Modified Bent Thick L-Shape 3 x 5 32526
11		Blue Technic, Pin 1/2 without Friction Ridges 4274
84		Blue Technic, Axle 1L with Pin with Friction Ridges 43093
91		Blue Technic, Pin 3L with Friction Ridges 6558
3		Dark Bluish Gray Technic Engine Crankshaft Center 2854
6		Dark Bluish Gray Technic, Liftarm, Modified Bent Thick 1 x 11.5 Double 32009
1		Dark Bluish Gray Technic, Axle 5.5L with Stop 32209
2		Dark Bluish Gray Technic, Gear 8 Tooth 3647
1		Dark Bluish Gray Technic, Gear 24 Tooth with 1 Axle Hole 3648
3		Dark Bluish Gray Technic, Liftarm Thick 1 x 13 41239
8		Dark Bluish Gray Technic, Liftarm Thin 1 x 2 - Axle Holes 41677
3		Dark Bluish Gray Technic, Axle 8L with Stop 55013
1		Dark Bluish Gray Technic, Axle and Pin Connector Block 4 x 3 x 2 1/2 (Linear Actuator Holder) 61904
1		Dark Bluish Gray Technic, Gear Differential 28 Tooth Bevel - Inner Tabs with Closed Center 62821b
13		Dark Bluish Gray Technic, Gear 16 Tooth with Clutch, Smooth 6542b
10		Dark Bluish Gray Technic, Axle 4L with Stop 87083
9		Dark Tan Technic, Axle 3L with Stud 6587
20		Light Bluish Gray Tile, Modified 1 x 2 Grille with Bottom Groove 2412b
1		Light Bluish Gray Technic, Steering Wheel Small, 3 Studs Diameter 2819
4		Light Bluish Gray Technic Engine Cylinder with Bottom Slots 2850b
4		Light Bluish Gray Technic Engine Connecting Rod 2852
4		Light Bluish Gray Technic, Brick 1 x 2 with Holes 32000
13		Light Bluish Gray Technic, Axle and Pin Connector Angled #2 - 180 degrees 32034
10		Light Bluish Gray Technic, Axle Connector with Axle Hole 32039
6		Light Bluish Gray Technic, Pin 3L with Friction Ridges and Stop Bush 32054
4		Light Bluish Gray Technic, Liftarm, Modified Bent Thin L-Shape 3 x 3 32056
12		Light Bluish Gray Technic, Axle 5L 32073
6		Light Bluish Gray Technic, Liftarm, Modified Bent Thick L-Shape 2 x 4 32140
1		Light Bluish Gray Technic Driving Ring Extension 32187
7		Light Bluish Gray Technic, Liftarm Thick 1 x 15 32278
5		Light Bluish Gray Technic, Liftarm Thick 1 x 5 32316
8		Light Bluish Gray Technic, Liftarm Thick 1 x 7 32524
7		Light Bluish Gray Technic, Liftarm Thick 1 x 11 32525
4		Light Bluish Gray Technic, Liftarm, Modified Bent Thick L-Shape 3 x 5 32526
8		Light Bluish Gray Technic, Pin without Friction Ridges 3673
22		Light Bluish Gray Technic Bush 3713
18		Light Bluish Gray Brick, Round 2 x 2 with Axle Hole 3941
7		Light Bluish Gray Technic, Liftarm Thick 1 x 9 40490
2		Light Bluish Gray Technic, Liftarm Thick 1 x 13 41239
2		Light Bluish Gray Tile, Round 2 x 2 4150
11		Light Bluish Gray Technic, Axle and Pin Connector Perpendicular 3L with 2 Pin Holes 42003
7		Light Bluish Gray Technic, Axle 7L 44294
63		Light Bluish Gray Technic, Axle 3L 4519
3		Light Bluish Gray Technic, Gear Worm Screw, Long 4716
1		Light Bluish Gray Technic Turntable 56 Tooth with Black Top (48452 / 48168) 48452cx1
7		Light Bluish Gray Technic, Pin Connector Perpendicular 3L with 4 Pins 48989
1		Light Bluish Gray Technic, Axle Connector Hub with 3 Axles 57585
1		Light Bluish Gray Electric, Motor 9V Power Functions M with Dark Bluish Gray Bottom 58120c01
1		Light Bluish Gray Electric 9V Battery Box 4 x 11 x 7 PF with Orange Switch and Dark Bluish Gray Covers 59510c01
24		Light Bluish Gray Technic, Liftarm Thick 1 x 2 - Axle Hole 60483
4		Light Bluish Gray Technic, Axle 9L 60485
1		Light Bluish Gray Technic Linear Actuator with Dark Bluish Gray Ends, Type 1 61927c01
3		Light Bluish Gray Technic, Pin Connector Round 2L with Slot (Pin Joiner Round) 62462
2		Light Bluish Gray Technic, Universal Joint 3L 62520c01
4		Light Bluish Gray Technic, Panel Curved 11 x 3 with 2 Pin Holes through Panel Surface 62531
6		Light Bluish Gray Technic, Axle and Pin Connector Perpendicular Triple 63869
2		Light Bluish Gray Technic, Liftarm, Modified Frame Thick 5 x 11 Open Center 64178
1		Light Bluish Gray Technic, Liftarm, Modified Frame Thick 5 x 7 Open Center 64179
14		Light Bluish Gray Technic, Axle and Pin Connector Perpendicular 6536
26		Light Bluish Gray Technic, Axle Connector 2L (Smooth with x Hole + Orientation) 6538c
2		Light Bluish Gray Technic, Axle 2L with Reverser Handle Axle Connector 6553
4		Light Bluish Gray Technic, Liftarm Thin 1 x 3 - Axle Holes 6632
6		Light Bluish Gray Wheel 43.2mm D. x 18mm - Flush Axle Stem 86652
1		Light Bluish Gray Technic, Gear 20 Tooth Bevel with Pin Hole 87407
1		Light Bluish Gray Technic Linear Actuator Mini with Dark Bluish Gray Head and Orange Axle 92693c01
15		Light Bluish Gray Technic, Gear 16 Tooth - Axle Hole with Closed Sides 94925
4		Light Bluish Gray Technic, Axle and Pin Connector Perpendicular Double 4L 98989
1		Light Bluish Gray Technic Turntable 28 Tooth, Base 99009
1		Metallic Silver Plate, Round 1 x 1 4073
25		Red Technic, Pin 3L with Friction Ridges and Stop Bush 32054
26		Red Technic, Axle 2L Notched 32062
4		Red Technic, Liftarm, Modified Bent Thick L-Shape 2 x 4 32140
16		Red Technic, Liftarm Thick 1 x 15 32278
2		Red Technic, Axle and Pin Connector Perpendicular Double 32291
4		Red Technic, Liftarm Thick 1 x 5 32316
2		Red Technic, Liftarm Thick 1 x 11 32525
14		Red Technic, Liftarm, Modified Bent Thick L-Shape 3 x 5 32526
3		Red Technic Driving Ring 2L with 4 Teeth 6539
10		Red Technic, Liftarm Thin 1 x 3 - Axle Holes 6632
2		Red Technic Changeover Catch 6641
8		Reddish Brown Wheel 30.4mm D. x 20mm with No Pin Holes and Reinforced Rim 56145
6		Tan Technic, Pin 3L without Friction Ridges 32556
6		Tan Technic, Axle 1L with Pin without Friction Ridges 3749
2		Tan Technic, Axle Connector 2L (Ridged with x Hole x Orientation) 6538b
7		Tan Technic, Gear 12 Tooth Bevel 6589
6		Trans-Clear Plate, Round 1 x 1 4073
5		Trans-Orange Plate, Round 1 x 1 4073
4		Trans-Red Plate, Round 1 x 1 4073
2		White Technic, Liftarm Thick 1 x 3 32523
2		White Technic, Gear 24 Tooth Clutch 60c01
4		Yellow Technic Engine Piston Round 2851
2		Yellow Technic Engine Crankshaft 2853
2		Yellow Technic, Liftarm, Modified Bent Thick 1 x 11.5 Double 32009
2		Yellow Technic, Liftarm Thin 1 x 5 32017
3		Yellow Technic, Liftarm, Modified Bent Thick L-Shape 2 x 4 32140
3		Yellow Technic, Liftarm Thick 1 x 15 32278
2		Yellow Technic, Liftarm Thick 1 x 5 32316
4		Yellow Technic, Liftarm, Modified Bent Thick L-Shape 3 x 5 32526
2		Yellow Technic, Liftarm Thick 1 x 9 40490
2		Yellow Technic, Liftarm Thick 1 x 13 41239
26		Yellow Technic Bush 1/2 Smooth 4265c
1		Yellow Technic, Liftarm Thick 1 x 2 43857
6		Yellow Technic, Axle Connector 2L (Smooth with x Hole + Orientation) 6538c
2		Yellow Technic, Liftarm, Modified Triangle Thin 3 x 5 with Short Supports 99773

Альтернативные позиции для набора

Сборные комплекты, детали с наклейками, а также позиции из других версий данного набора (например, из других стран или ревизий)

Кол−воКоличество	Фото	Название
8		Black Technic, Liftarm, Modified Triangle Thin 3 x 5 with Full Supports 2905
2		Black Technic, Liftarm, Modified Bent Thick 1 x 7 (4 - 4) with Black and Yellow Danger Stripes Pattern 2 (Sticker) - Set 9397 32348pb011
2		Black Technic, Liftarm, Modified Bent Thick 1 x 7 (4 - 4) with Black and Yellow Danger Stripes Pattern 1 (Sticker) - Set 9397 32348pb012
1		Black Technic, Liftarm Thick 1 x 11 with '27' and Orange and White Stripes Pattern Model Left Side (Sticker) - Set 9397 32525pb014L
1		Black Technic, Liftarm Thick 1 x 11 with '27' and Orange and White Stripes Pattern Model Right Side (Sticker) - Set 9397 32525pb014R
1		Black Technic, Panel Curved 11 x 3 with 2 Pin Holes with Orange and White Stripes Pattern Model Left Side (Sticker) - Set 9397 62531pb040L
1		Black Technic, Panel Curved 11 x 3 with 2 Pin Holes with Orange and White Stripes Pattern Model Right Side (Sticker) - Set 9397 62531pb040R
1		Black Technic, Panel Fairing #13 Large Short Smooth, Side A with 'Logging Service' and '555-9397-2012' Pattern (Sticker) - Set 9397 64394pb015
1		Black Technic, Panel Fairing #14 Large Short Smooth, Side B with 'Logging Service' and '555-9397-2012' Pattern (Sticker) - Set 9397 64680pb015
1		Black Technic, Liftarm, Modified Bent Thick 1 x 9 (6 - 4) with Black and Yellow Danger Stripes Pattern Model Left Side (Sticker) - Set 9397 6629pb025L
1		Black Technic, Liftarm, Modified Bent Thick 1 x 9 (6 - 4) with Black and Yellow Danger Stripes Pattern Model Right Side (Sticker) - Set 9397 6629pb025R
1		Light Bluish Gray Technic, Liftarm Thick 1 x 15 with Yellow and Black Danger Stripes Pattern (Stickers) - Set 9397 32278pb033
1		Light Bluish Gray Technic, Liftarm Thick 1 x 9 with Crane Rotation and Outrigger Operating Instructions Pattern (Sticker) - Set 9397 40490pb023
1		Light Bluish Gray Technic, Liftarm Thick 1 x 9 with Crane Operating Instructions Pattern (Sticker) - Set 9397 40490pb024
1		Light Bluish Gray Electric 9V Battery Box 4 x 11 x 7 PF with Black and Yellow Arrows Pattern (Sticker) - Set 9397 59510c01pb05
6		Light Bluish Gray Wheel 43.2mm D. x 18mm - Flush Axle Stem with Black Tire 62.4 x 20 S (86652 / 32019) 86652c01
1		Light Bluish Gray Technic Turntable 28 Tooth with Black Top (99009 / 99010) 99009c01
1		White Technic, Liftarm Thick 1 x 3 with 'UW 9397' Pattern (Sticker) - Set 9397 32523pb12
2		Yellow Technic, Liftarm, Modified Triangle Thin 3 x 5 with Full Supports 2905
1		Yellow Technic, Liftarm Thick 1 x 9 with Black and Yellow Danger Stripes Pattern Model Left Side (Sticker) - Set 9397 40490pb042L
1		Yellow Technic, Liftarm Thick 1 x 9 with Black and Yellow Danger Stripes Pattern Model Right Side (Sticker) - Set 9397 40490pb042R

Запасные детали для набора

Данные детали лежат с другими деталями набора, но не используются при сборке

Кол−воКоличество	Фото	Название
1		Black Technic, Pin with Short Friction Ridges 2780
1		Blue Technic, Pin 1/2 without Friction Ridges 4274
1		Dark Bluish Gray Technic, Gear 8 Tooth 3647
1		Light Bluish Gray Technic, Pin without Friction Ridges 3673
1		Light Bluish Gray Technic Bush 3713
1		Metallic Silver Plate, Round 1 x 1 4073
1		Tan Technic, Gear 12 Tooth Bevel 6589
2		Trans-Clear Plate, Round 1 x 1 4073
1		Trans-Orange Plate, Round 1 x 1 4073
1		Trans-Red Plate, Round 1 x 1 4073
2		Yellow Technic Bush 1/2 Smooth 4265c

Инструкция по сборке набора

Кол−воКоличество	Фото	Название
1		Logging Truck 9397-1

Коробка от набора

Кол−воКоличество	Фото	Название
1		Logging Truck 9397-1
