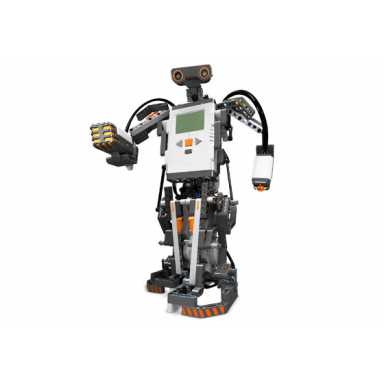

Набор LEGO 8527 Mindstorms NXT

Серия: MINDSTORMS

Общая информация

• Артикул: 8527-1
• Год выпуска: 2006
• Вес: 673 гр
• Коробка: ? см x ? см x ? см

Состав набора

• 578 деталей
• Инструкция и коробка

Детали в наборе

Кол−воКоличество	Фото	Название
1		Paper Test Mat for Mindstorms NXT 4297446
3		Electric, Motor NXT 53787
1		Electric Sensor, Ultrasonic - NXT 53792
1		Electric Sensor, Touch - NXT 53793
1		Electric Sensor, Sound - NXT 55963
1		Electric Sensor, Light - NXT 55969
1		Sticker Sheet for Set 8527 - (57103/4299391) 8527stk01
80		Black Technic, Pin with Short Friction Ridges 2780
4		Black Technic, Liftarm, Modified Triangle Thin 3 x 5 with Full Supports 2905
4		Black Technic, Axle and Pin Connector Angled #1 32013
16		Black Technic, Axle and Pin Connector Angled #6 - 90 degrees 32014
2		Black Technic, Axle and Pin Connector Angled #2 - 180 degrees 32034
4		Black Technic, Axle Connector with Axle Hole 32039
8		Black Technic, Pin 3L with Friction Ridges and Stop Bush 32054
22		Black Technic, Axle 2L Notched 32062
4		Black Technic Knob Cog / Gear / Wheel with Axle Hole (+ Orientation) 32072
3		Black Technic, Pin Double with Axle Hole 32138
4		Black Technic, Axle and Pin Connector Perpendicular 3L with Center Pin Hole 32184
2		Black Technic, Axle and Pin Connector Angled #4 - 135 degrees 32192
4		Black Technic, Gear 12 Tooth Double Bevel 32270
2		Black Technic, Link 1 x 9 32293
1		Black Technic, Gear 36 Tooth Double Bevel 32498
4		Black Technic, Pin Connector Perpendicular Double 3L 32557
4		Black Technic, Axle 4L 3705
4		Black Technic, Axle 6L 3706
2		Black Technic, Axle 8L 3707
2		Black Technic, Axle 12L 3708
4		Black Technic, Axle 10L 3737
8		Black Technic, Axle Connector Double - Flexible Rubber 45590
2		Black Technic, Gear Worm Screw, Long 4716
1		Black Electric, Connector Cable, Mindstorms NXT 20cm 55804
4		Black Electric, Connector Cable, Mindstorms NXT 35cm 55805
2		Black Electric, Connector Cable, Mindstorms NXT 50cm 55806
4		Black Tire 56 x 26 Balloon 55976
34		Black Technic, Pin 3L with Friction Ridges 6558
8		Black Technic, Pin with Friction Ridges and Tow Ball (Undetermined Type) 6628
4		Black Technic, Pin Connector Round 2L without Slot (Pin Joiner Round) 75535
1		Black Electric, Cable USB for Mindstorms NXT, Male USB-A to Male USB-B (Length 2m / 6ft) x1627
1		Blue Ball, Hard Plastic 52mm D. (Duplo Ball for Ball Tube) 41250
42		Blue Technic, Axle 1L with Pin with Friction Ridges 43093
3		Dark Bluish Gray Technic, Link 1 x 6 with Stoppers 2739b
6		Dark Bluish Gray Technic, Liftarm, Modified Bent Thick 1 x 11.5 Double 32009
10		Dark Bluish Gray Technic, Liftarm, Modified Bent Thick L-Shape 2 x 4 32140
2		Dark Bluish Gray Technic, Axle 5.5L with Stop 32209
2		Dark Bluish Gray Technic, Liftarm, Modified Bent Thick 1 x 9 (7 - 3) 32271
6		Dark Bluish Gray Technic, Axle and Pin Connector Perpendicular Double 32291
5		Dark Bluish Gray Technic, Liftarm Thick 1 x 5 32316
16		Dark Bluish Gray Technic, Liftarm, Modified Bent Thick 1 x 7 (4 - 4) 32348
16		Dark Bluish Gray Technic, Liftarm Thick 1 x 3 32523
8		Dark Bluish Gray Technic, Liftarm, Modified Bent Thick L-Shape 3 x 5 32526
4		Dark Bluish Gray Technic, Brick 1 x 4 with Holes 3701
2		Dark Bluish Gray Technic, Brick 1 x 6 with Holes 3894
6		Dark Bluish Gray Technic, Axle and Pin Connector Perpendicular Double Split 41678
6		Dark Bluish Gray Technic, Axle and Pin Connector Perpendicular 3L with 2 Pin Holes 42003
1		Dark Bluish Gray Technic Turntable 56 Tooth with Black Top (48452 / 48168) 48452cx1
2		Dark Bluish Gray Technic, Axle Connector 2L (Ridged with x Hole x Orientation) 6538b
4		Dark Bluish Gray Technic, Axle 3L with Stud 6587
2		Light Bluish Gray Technic, Axle 1L with Tow Ball 2736
7		Light Bluish Gray Technic, Axle 5L 32073
2		Light Bluish Gray Technic, Gear 20 Tooth Double Bevel 32269
13		Light Bluish Gray Technic, Pin 3L without Friction Ridges 32556
6		Light Bluish Gray Technic, Gear 8 Tooth 3647
7		Light Bluish Gray Technic, Gear 24 Tooth with 1 Axle Hole 3648
1		Light Bluish Gray Technic, Gear 40 Tooth 3649
3		Light Bluish Gray Technic, Pin without Friction Ridges 3673
16		Light Bluish Gray Technic Bush 3713
2		Light Bluish Gray Technic, Gear 16 Tooth - Axle Hole with Open Sides 4019
2		Light Bluish Gray Technic Wedge Belt Wheel (Pulley) 4185
6		Light Bluish Gray Technic Bush 1/2 Smooth 4265c
4		Light Bluish Gray Technic, Axle 7L 44294
1		Light Bluish Gray Technic, Pin Connector Perpendicular 2 x 2 Bent 44809
17		Light Bluish Gray Technic, Axle 3L 4519
13		Light Bluish Gray Technic, Pin Connector Perpendicular 3L with 4 Pins 48989
8		Light Bluish Gray Technic, Pin Connector Perpendicular 3 x 3 Bent with 4 Pins 55615
4		Light Bluish Gray Wheel 30.4mm D. x 20mm with No Pin Holes and Reinforced Rim 56145
8		Light Bluish Gray Technic, Axle and Pin Connector Perpendicular 6536
1		Light Bluish Gray Technic, Axle 2L with Reverser Handle Axle Connector 6553
8		Orange Bionicle 1 x 3 Tooth with Axle Hole (Bohrok Eye) x346
4		Pearl Light Gray Bionicle Visorak Fang with 2 Pin Holes (Suukorak) 50914
1		Red Ball, Hard Plastic 52mm D. (Duplo Ball for Ball Tube) 41250
4		Tan Technic, Axle 1L with Pin without Friction Ridges 3749
11		Very Light Bluish Gray Technic, Liftarm Thick 1 x 15 32278
6		Very Light Bluish Gray Technic, Liftarm Thick 1 x 7 32524
7		Very Light Bluish Gray Technic, Liftarm Thick 1 x 11 32525
7		Very Light Bluish Gray Technic, Liftarm Thick 1 x 9 40490
4		Very Light Bluish Gray Technic, Liftarm Thick 1 x 13 41239
1		Very Light Bluish Gray Mindstorms NXT - Complete Brick with Dark Bluish Gray Base 53788
3		White Cone 1 x 1 4589

Альтернативные позиции для набора

Сборные комплекты, детали с наклейками, а также позиции из других версий данного набора (например, из других стран или ревизий)

Кол−воКоличество	Фото	Название
4		Black Technic, Pin Connector Round 2L with Slot (Pin Joiner Round) 62462
4		Light Bluish Gray Wheel 30.4mm D. x 20mm with No Pin Holes and Reinforced Rim with Black Tire 56 x 26 Balloon (56145 / 55976) 56145c02
1		Light Gray Technic, Axle 2L with Reverser Handle Axle Connector 6553
3		White Cone 1 x 1 with Top Groove 4589b

Запасные детали для набора

Данные детали лежат с другими деталями набора, но не используются при сборке

Кол−воКоличество	Фото	Название
2		Black Technic, Pin with Short Friction Ridges 2780
1		Light Bluish Gray Technic, Gear 8 Tooth 3647
1		Light Bluish Gray Technic Bush 3713
3		Light Bluish Gray Technic Bush 1/2 Smooth 4265c
1		Tan Technic, Axle 1L with Pin without Friction Ridges 3749

Инструкция по сборке набора

Кол−воКоличество	Фото	Название
1		Mindstorms NXT 8527-1

Коробка от набора

Кол−воКоличество	Фото	Название
1		Mindstorms NXT 8527-1
